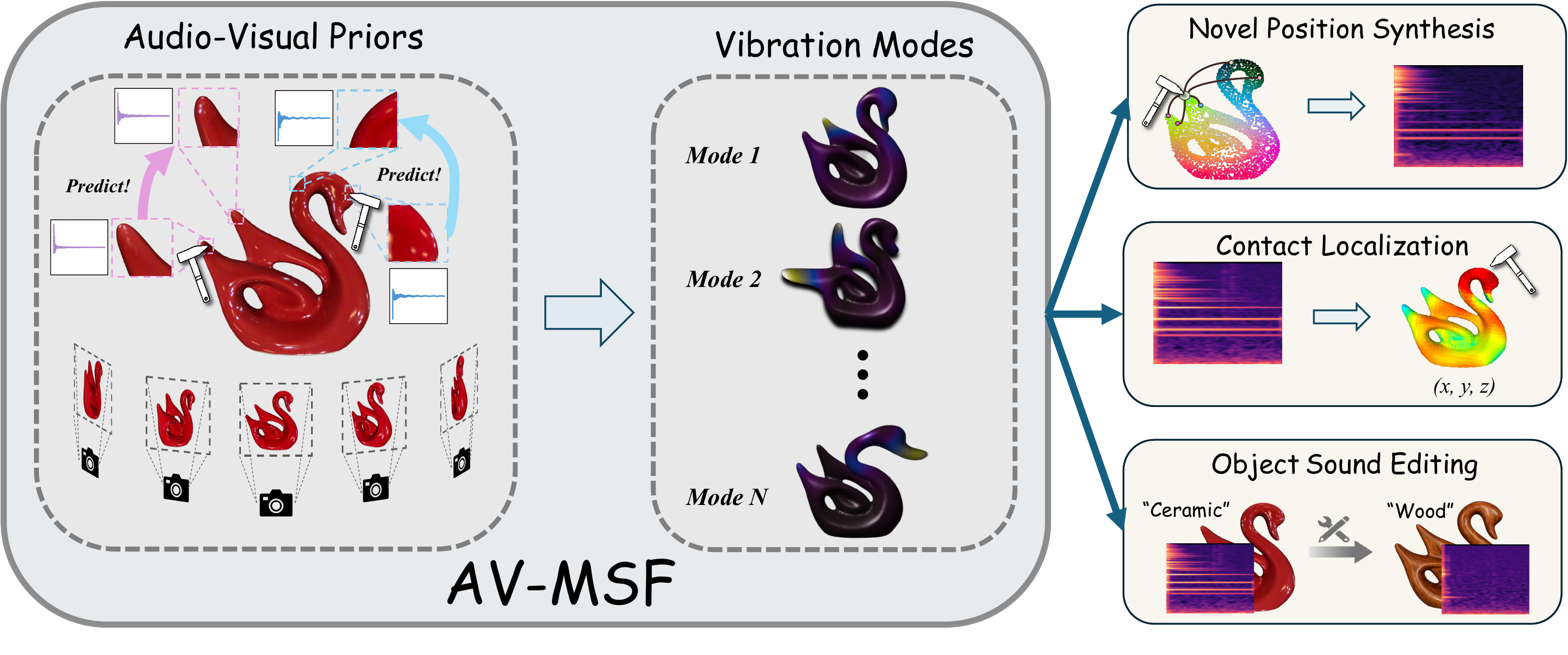

AV-MSF teaser showing audio-visual priors, vibration modes, and downstream applications — Audio-Visual Modal Sound Field (AV-MSF) is a physically-grounded object-level acoustic representation, reconstructed from multi-view images and few-shot impact recordings. It leverages the insight that visually similar object regions exhibit similar vibration patterns. AV-MSF enables diverse applications, including novel-position impact sound synthesis, contact localization, and object sound editing.

Abstract

While modern 3D reconstruction excels at modeling object geometry and appearance, it largely ignores the rich acoustic cues revealed through physical interaction. Object impact sounds convey material, stiffness, and structural properties that complement vision, yet existing impact sound modeling approaches either rely on expensive physics-based simulation or require large datasets to generalize in a purely data-driven manner. We introduce Audio-Visual Modal Sound Field (AV-MSF), a novel object-level acoustic representation reconstructed from multi-view images and only a few impact sound recordings. AV-MSF builds on 3D Gaussian Splatting integrated with dense 3D visual feature to provide a strong geometry-aware prior, and represents the impact sound field using compact, physically meaningful modal parameters, enabling robust few-shot reconstruction. Experiments on two real-world datasets show that AV-MSF achieves state-of-the-art impact sound rendering, outperforming both physics-based and data-driven baselines. Furthermore, we demonstrate downstream applications enabled by our representation, including contact localization and object sound editing.

Interactive Demo

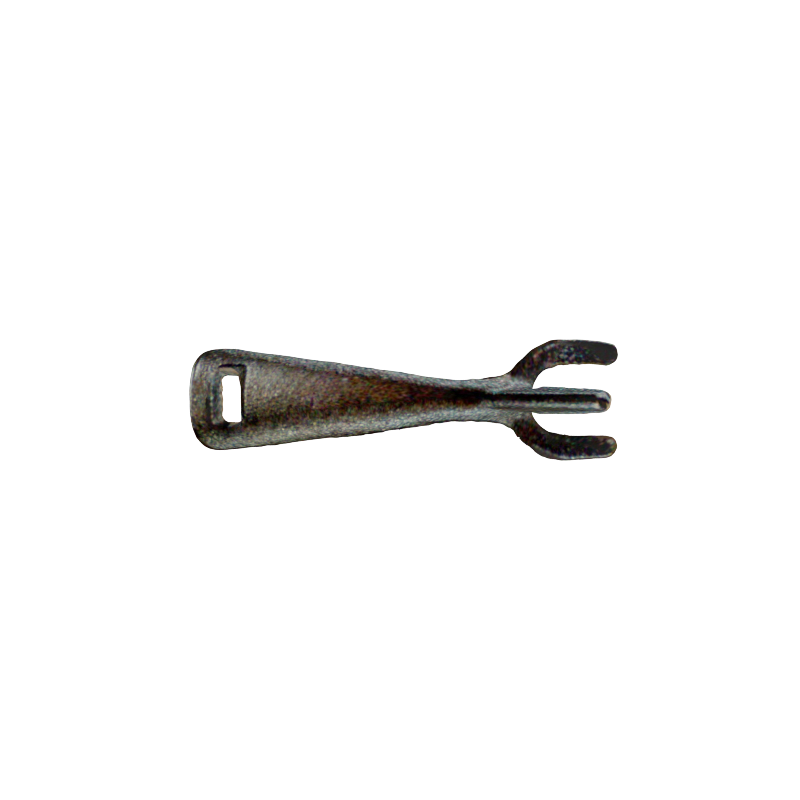

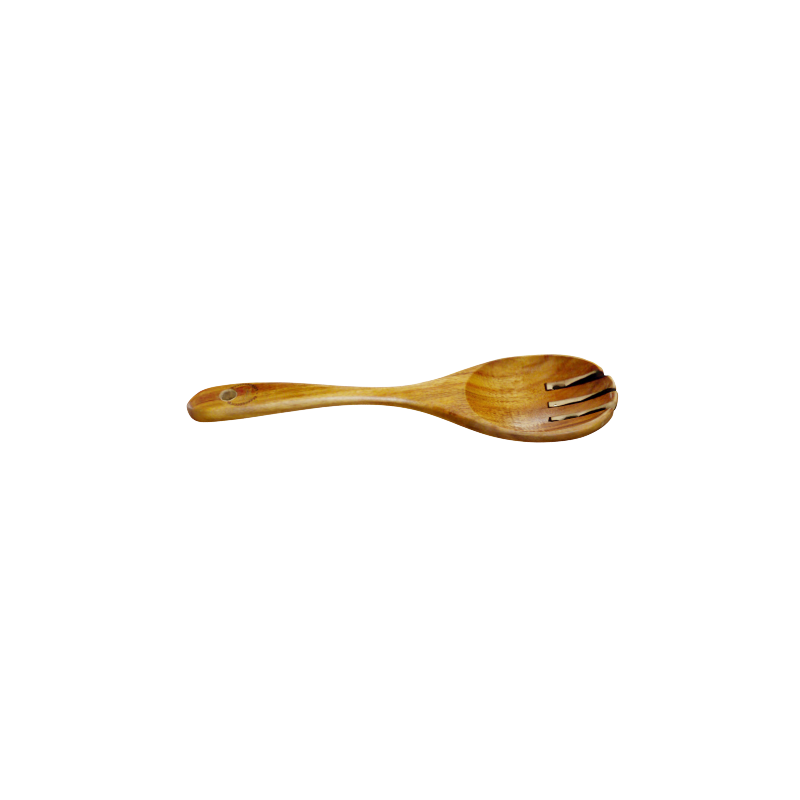

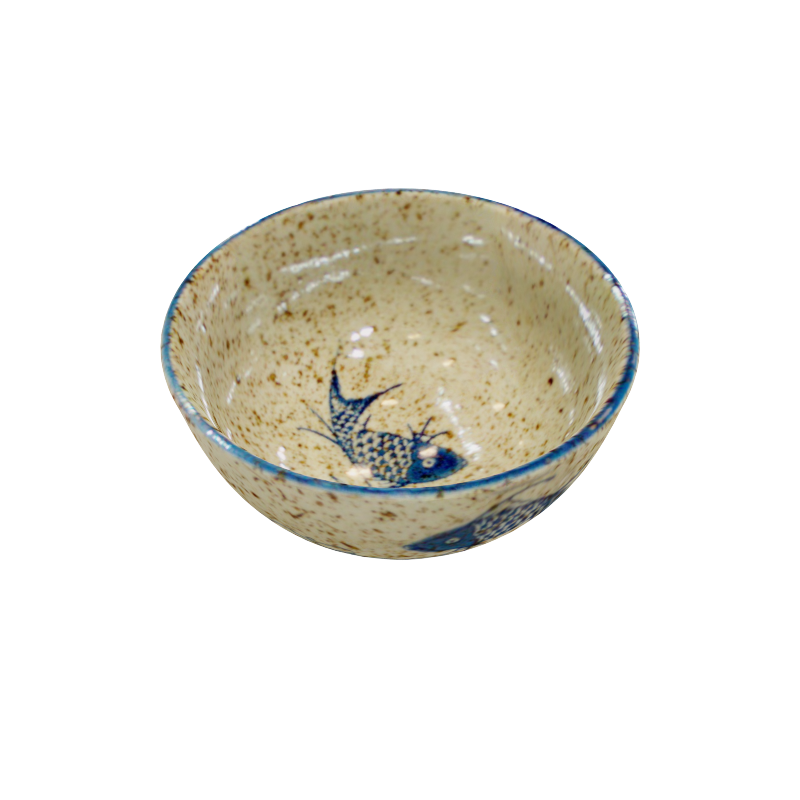

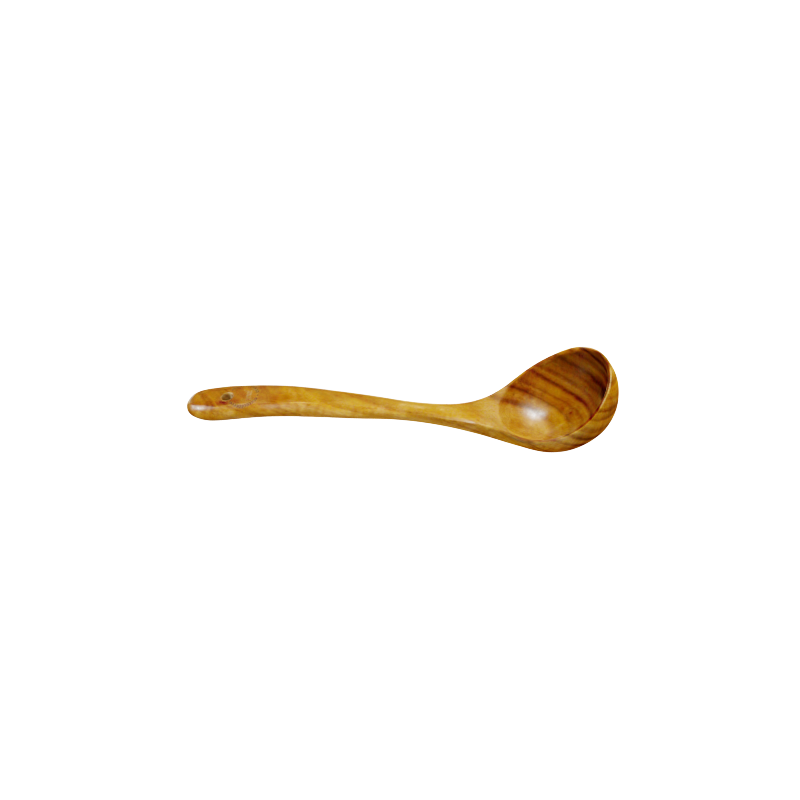

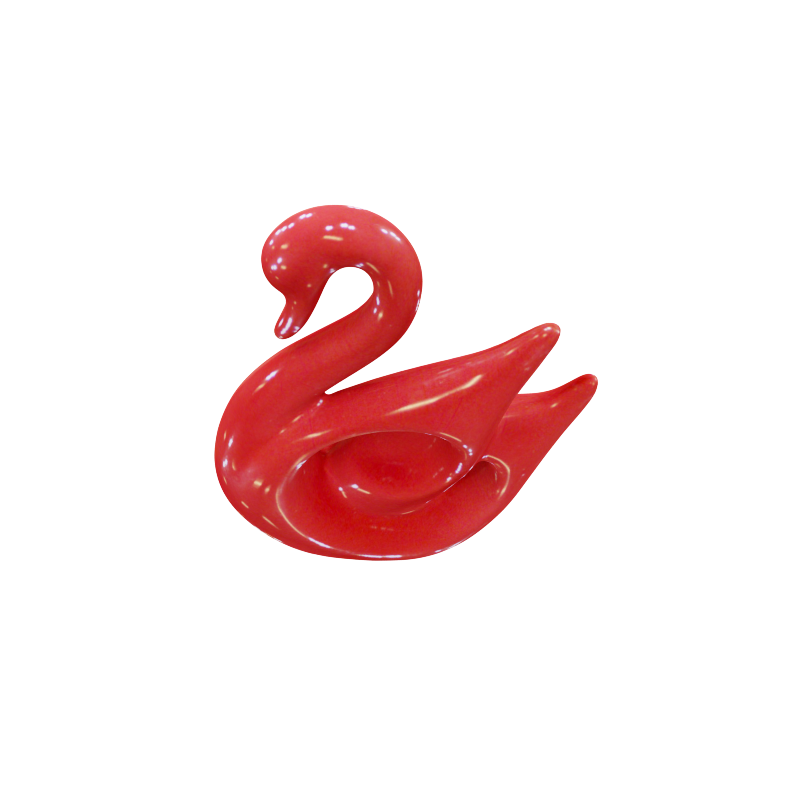

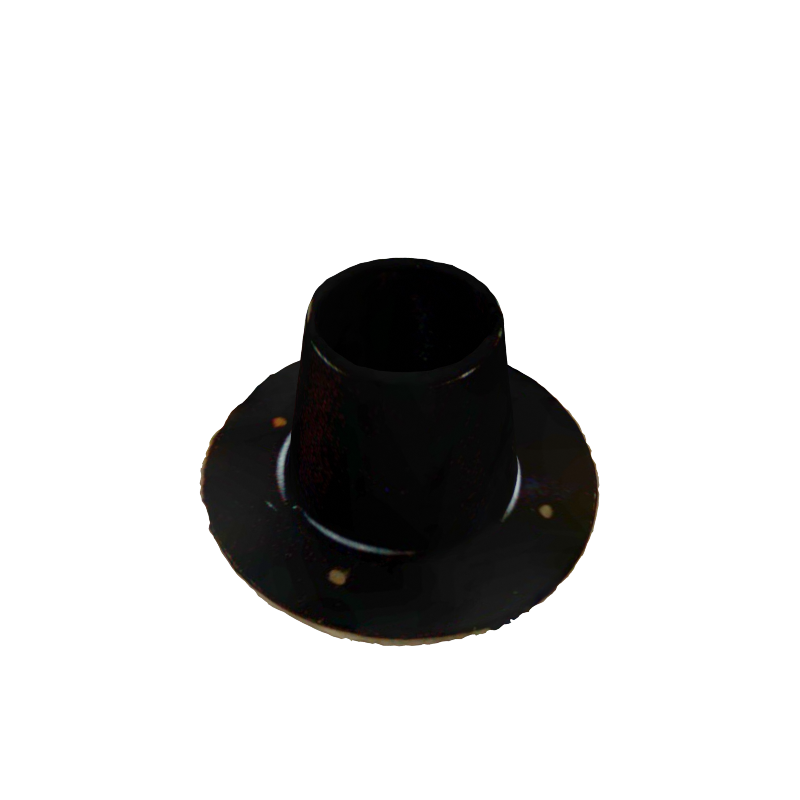

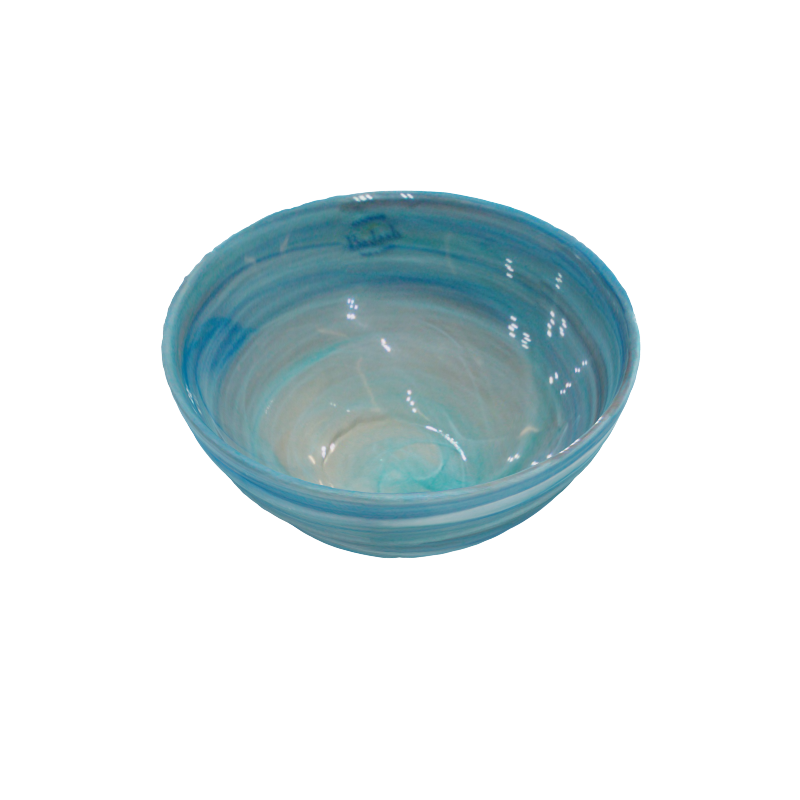

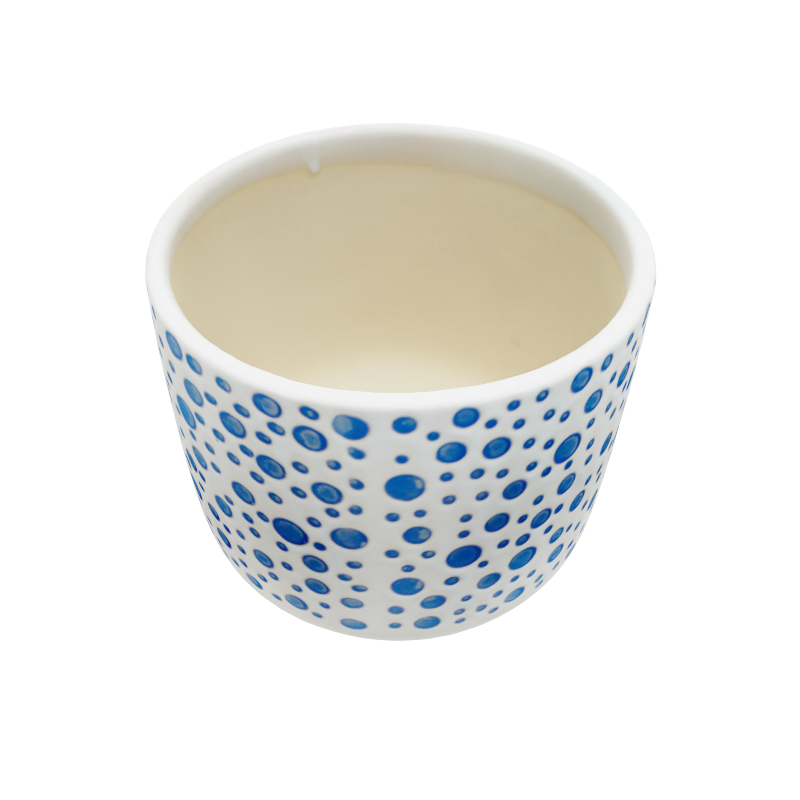

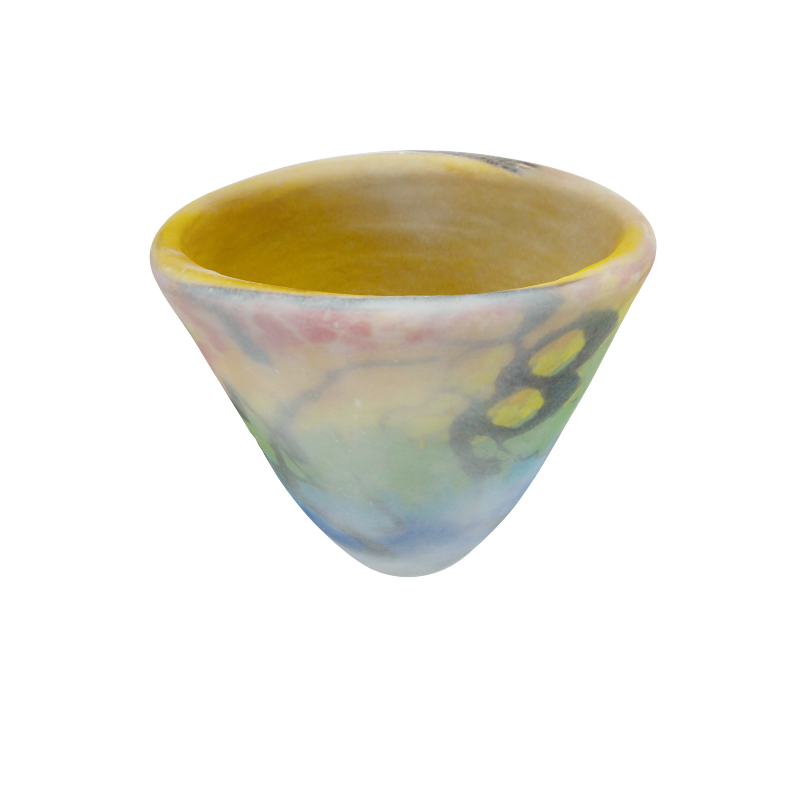

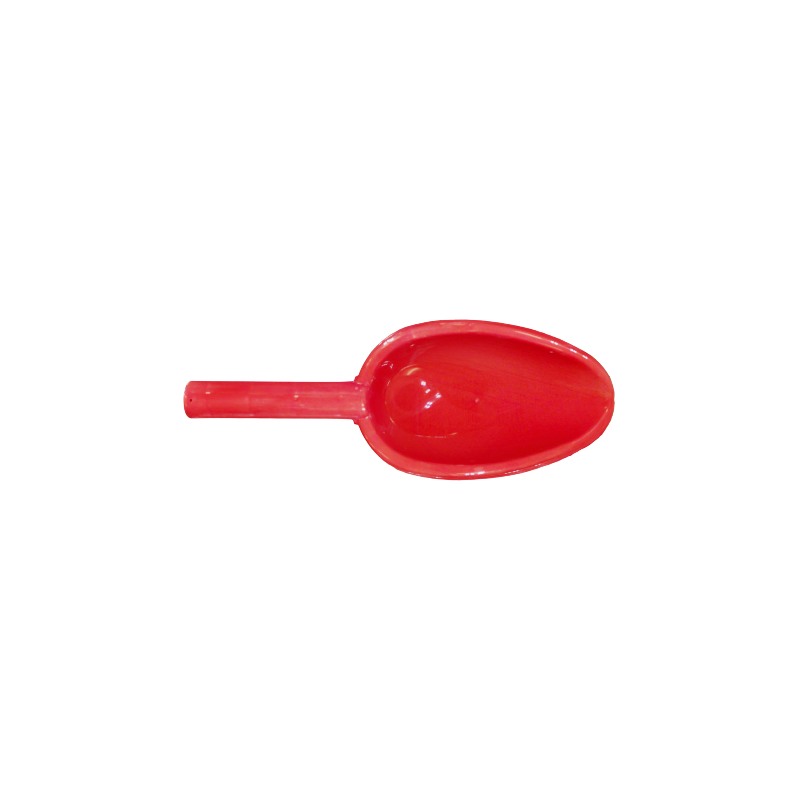

All objects are trained using only 20% of the available impact recordings (~6 shots).

Method Overview

Given multi-view image observations and few-shot impact recordings, our framework reconstructs an audio-visual modal sound field.

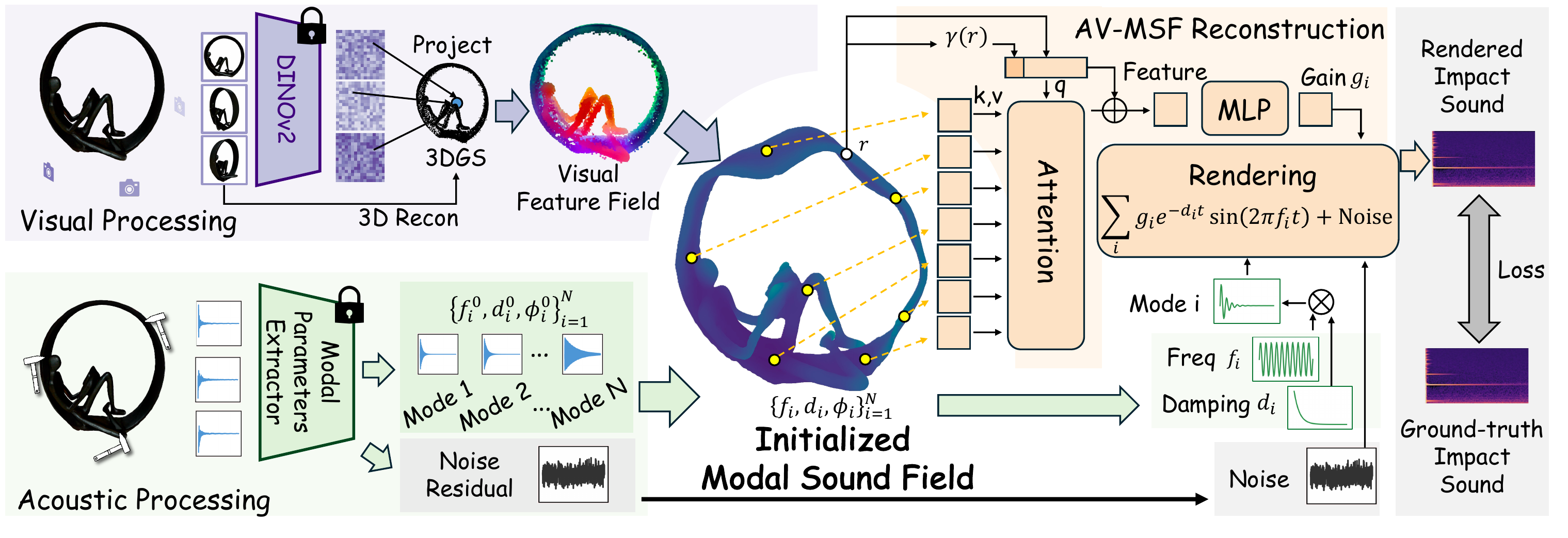

Overview of the AV-MSF reconstruction framework

Visual Processing. We extract dense features with a pre-trained vision encoder and lift them into a 3D Gaussian Splatting (3DGS) representation to form a geometry-aware visual feature field.

Acoustic Processing. We extract modal parameters from a few reference recordings to initialize optimization, and model unmodeled environmental noise with a residual component.

AV-MSF Reconstruction. We jointly optimize global modal frequencies and dampings, residual noise, and an implicit spatially varying neural gain field, guided by the visual feature field.

Impact Sound Rendering

Comparison of rendered impact sounds from DiffSound, SonicGauss, AV-MSF and the ground truth. Our method yields faithful spectral structures while remaining position-aware.

Contact Localization

AV-MSF localizes a novel impact by matching its mode parameters against the learned sound field. Red arrows indicate ground-truth impact locations, and blue arrows indicate predictions. Predicted regions are shown with red indicating high likelihood and blue indicating low likelihood.

Limitations and Failure Cases

Impact Sound Rendering

Rendering may fail when the queried impact lie near regions with sharp geometric changes, yet no training samples are collected from similar local geometries. Thus performance is limited by the lack of representative training observations.

Contact Localization

Contact localization remains challenging for highly symmetric (Object 1) or small (Object 2) objects. Symmetric regions may share similar modal parameters despite being far apart. For small objects, simple vibration modes can yield similar impact sounds across locations.

Citation

@inproceedings{shao2026avmsf,
  title={Objects as Audio-Visual Modal Sound Fields},
  author={Shao, Zisen and Wei, Zihao and Jin, Derong and Gao, Ruohan},
  booktitle={European Conference on Computer Vision (ECCV)},
  year={2026}
}
